| BEARINGS | ID (in) | OD (in) | W (in) | |
|---|---|---|---|---|
 | BR-L44643 | 1.00 | 1.98 | 0.56 |
| BR-L44649 | 1.06 | 1.98 | 0.56 | |
| BR-02475 | 1.25 | 2.69 | 0.88 | |
| BR-LM67048 | 1.25 | 2.33 | 0.63 | |
| BR-15123 | 1.25 | 2.44 | 0.72 | |
| BR-14125A | 1.25 | 2.71 | 0.78 | |
| BR-L68149 | 1.38 | 2.36 | 0.63 | |
| BR-25580 | 1.75 | 3.27 | 0.94 | |
| BR-387A | 2.25 | 3.81 | 0.83 |
| BEARING RACES | ID (in) | OD (in) | W (in) | |
|---|---|---|---|---|
 | RACE-L44610 | 1.00 | 1.98 | 0.56 |
| RACE-02420 | 1.25 | 2.69 | 0.88 | |
| RACE-15245 | 1.25 | 2.44 | 0.72 | |
| RACE-14276 | 1.25 | 2.71 | 0.78 | |
| RACE-L68110 | 1.38 | 2.33 | 0.63 | |
| RACE-L68111 | 1.38 | 2.36 | 0.63 | |
| RACE-25520 | 1.75 | 3.27 | 0.94 | |
| RACE-382A | 2.25 | 3.81 | 0.83 |
| GREASE SEALS | ID (in) | OD (in) | W (in) | |
|---|---|---|---|---|
 | OS-12192TB | 1.25 | 1.98 | 0.25 |
| OS-15192TB | 1.50 | 1.98 | 0.25 | |
| OS-168233TB | 1.69 | 2.33 | 0.31 | |
| OS-168255TB | 1.69 | 2.57 | 0.5 | |
| OS-171255TB | 1.72 | 2.56 | 0.5 | |
| OS-21333TB | 2.13 | 3.37 | 0.31 | |
| OS-22333TB | 2.25 | 3.37 | 0.38 | |
| OS-10-63 | 2.25 | 3.37 | 0.48 | |
| OS-10-51 | 2.88 | 3.88 | 0.5 | |
| OS-10-56 | 3.13 | 4.5 | 0.6 |
| DUST CAPS | ||
|---|---|---|
 | DUST CAP-200 | DUST CAP 2″ (3500) |
| DUST CAP-200L | DUST CAP 2″ (3500) EZ LUBE | |
| DUST CAP-250 | DUST CAP 2.5″ (5200) | |
| DUST CAP-250L | DUST CAP 2.5″ (5200) EZ LUBE | |
| DUST CAP-275 | DUST CAP 2.75″ (7000) | |
| DUST CAP-275L | DUST CAP 2.75″ (7000) EZ LUBE | |
| RUBBER PLUG-RP | RUBBER PLUG |
| BRAKE DRUMS | ||
|---|---|---|
 | DRUM1053545 | DRUM 10″ 3500 LBS 5 ON 4.5 |
| DRUM1053550 | DRUM 10″ 3500 LBS 5 ON 5 | |
| DRUM10555 | DRUM 10″ 3500 LBS 5 ON 5.5 | |
| DRUM1063555 | DRUM 10″ 3500 LBS 6 ON 5.5 | |
| DRUM1265255 | DRUM 12″ 5200 LBS 6 ON 5.5 | |
| DRUM1286965 | DRUM 12″ 7000 LBS 8 ON 6.5 |
| IDLER HUBS | ||
|---|---|---|
 | HUB-42040 | IDLER HUB 2500 LBS 4 ON 4 |
| HUB-52045 | IDLER HUB 2500 LBS 5 ON 4.5 | |
| HUB-53545 | IDLER HUB 3500 LBS 5 ON 4.5 | |
| HUB-53550 | IDLER HUB 3500 LBS 5 ON 5 | |
| HUB-53555 | IDLER HUB 3500 LBS 5 ON 5.5 | |
| HUB-63555 | IDLER HUB 3500 LBS 6 ON 5.5 | |
| HUB-65255 | IDLER HUB 5200 LBS 6 ON 5.5 | |
| HUB-86065 | IDLER HUB 7000 LBS 8 ON 6.5 |
| BRAKE KITS | ||
|---|---|---|
  | ELEC BRAKE 10 L | ELECTRIC BRAKE 10″ LEFT |
| ELEC BRAKE 10 R | ELECTRIC BRAKE 10″ RIGHT | |
| ELEC BRAKE 12 L | ELECTRIC BRAKE 12″ LEFT | |
| ELEC BRAKE 12 R | ELECTRIC BRAKE 12″ RIGHT | |
| HYD 10L | HYDRAULIC BRAKE 10″ LEFT PAINTED | |
| HYD 10R | HYDRAULIC BRAKE 10″ RIGHT PAINTED | |
| HYD 12L | HYDRAULIC BRAKE 12″ LEFT PAINTED | |
| HYD 12R | HYDRAULIC BRAKE 12″ RIGHT PAINTED |
| U-BOLT KITS | ||
|---|---|---|
| U-BOLT-1.75 RD | U BOLT KIT 1.75″ RD TUBE KIT 3/8″ DIA | |
| U-BOLT-2.375 RD | U BOLT KIT 2.375″ RD TUBE KIT 1/2″ DIA | |
| U-BOLT-3″ RD | U BOLT KIT 3″ RD TUBE KIT 1/2″ DIA | |
| U-BOLT-3″RD 7-1/4L | U BOLT KIT 3″ RD X 7-1/4″ LONG 9/16″ DIA | |
| U-BOLT-3.5″ RD | U BOLT KIT 3-1/2″ RD TUBE KIT 9/16″ DIA | |
| U-BOLT 2″ SQ X5.75″ | U-BOLT KIT 2″ SQ X 5.75″ 9/16″ DIA | |
| U-BOLT 2″ SQ X7″ | U-BOLT KIT 2″ SQ X 7″ 9/16″ DIA |
| FASTENERS | ||
|---|---|---|
 | FA-DW100 | 1″ D WASHER |
| FA-SN100 | 1″-14 SPINDLE NUTS | |
| FA-SW100 | 1″ SPINDLE WASHER | |
| FA-TW100 | 1″ TANG WASHER | |
| COTTER-CP175 | 1/8″ X 1-1/2″ COTTER PIN |
| GREASE | ||
|---|---|---|
| GREASE | GREASE EP LITHIUM #2 35 LB PAIL |
| LEAF SPRINGS |
|---|
| PART NUMBER | WIDTH (in) | LEAVES | LENGTH (in) | ARCH (in) | CAPACITY (lbs) |
|---|---|---|---|---|---|

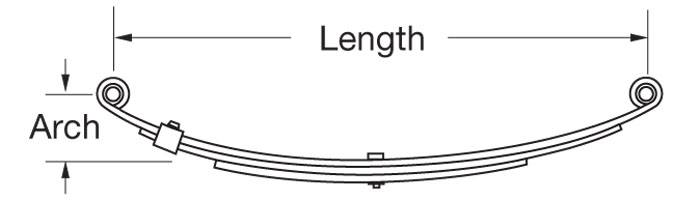

| DOUBLE EYE |  | ||||
| SPRING DE SW-3 | 1.75 | 3 | 25.25 | 3 | 1750 |
| SPRING DE SW-4 | 1.75 | 4 | 25.25 | 3 | 2200 |
| SPRING DE SW-4B | 1.75 | 4 | 25.25 | 3 | 1750 |
| SPRING DE SW-5/PR5 | 1.75 | 5 | 25.25 | 3 | 2950 |
| SPRING DE SW-6 | 1.75 | 6 | 25.25 | 3 | 3300 |
| SPRING DE AWS-2 | 1.75 | 2 | 26.00 | 4.25 | 1000 |
| SPRING DE AWS-3 | 1.75 | 3 | 26.00 | 4.25 | 1500 |
| SPRING DE AWS-4 | 1.75 | 4 | 26.00 | 4.25 | 2000 |
| SPRING DE AWS-5 | 1.75 | 5 | 26.00 | 4.25 | 2500 |
| SPRING DE AWS-6 | 1.75 | 6 | 26.00 | 4.25 | 3000 |
| SPRING DE AWS-7 | 1.75 | 7 | 26.00 | 4.25 | 3500 |
| SPRING DE SW-1724 | 1.75 | 3 | 23.25 | 3.5 | 1750 |
| SPRING DE SW-1020 | 1.75 | 3 | 20.38 | 3.38 | 1000 |

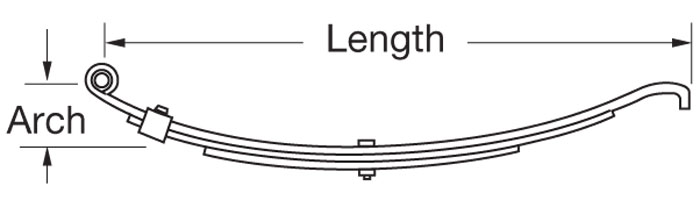

| SLIPPER HOOK |  | ||||
| SPRING 803T3 | 2.00 | 4 | 26.50 | 3 | 2000 |
| SPRING E5226 | 2.00 | 5 | 26.50 | 3.5 | 3400 |
| SPRING 1203T3 | 2.00 | 5 | 26.50 | 3.18 | 3500 |
| SPRING 1403T3 | 2.00 | 7 | 26.50 | 3 | 4000 |
| SPRING E5115 | 2.00 | 6 | 29.50 | 3.5 | 4300 |

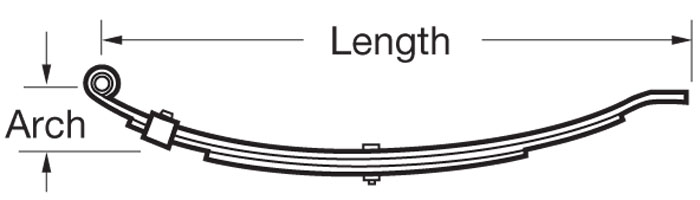

| SLIPPER FLAT |  | ||||
| SPRING E-WIF3 | 1.75 | 3 | 24.25 | 4 | 750 |
| SPRING E-WIH4 | 1.75 | 4 | 24.25 | 4 | 1000 |
| SPRING 7210-2 | 2.00 | 6 | 30.00 | 3.84 | 4500 |
| SPRING 7280 | 2.50 | 5 | 30.69 | 4 | 5000 |
| SPRING 7243 | 3.00 | 5 | 30.50 | 4 | 5000 |
| SPRING 7244 | 3.00 | 6 | 30.50 | 4 | 6000 |

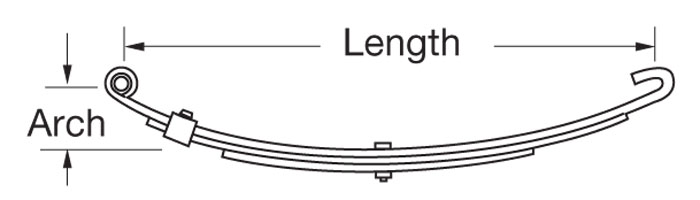

| SLIPPER OPEN C |  | ||||
| SPRING C4 | 1.75 | 4 | 26.25 | 3.5 | 2350 |
| SPRING C6 | 1.75 | 6 | 26.25 | 3.5 | 3500 |
